Spring Boot2 实战系列之登录注册(二) - 登录实现

前言

在前面的博文 Spring Boot2 实战系列之登录注册(一) - 注册实现 中实现了一个基本的注册功能，这次继续把登录功能加上，采用 spring security 对用户进行认证，采用 session 管理用户登录状态。

项目架构

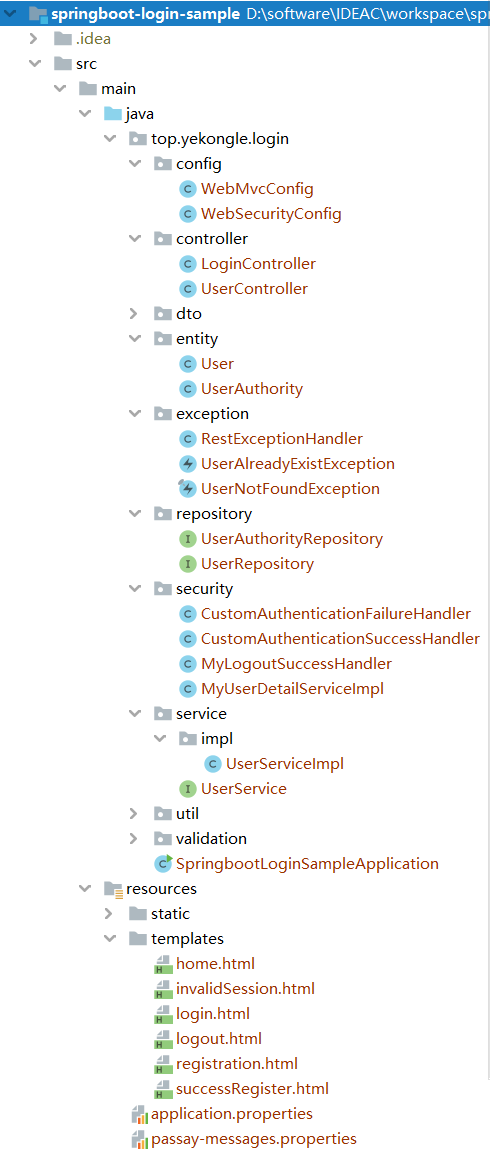

项目结构图如下：

pom 依赖如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.5.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>top.yekongle</groupId>
    <artifactId>springboot-login-sample</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring-boot-starter-parent</name>
    <description>Login sample for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
        <passay.version>1.5.0</passay.version>
        <guava.version>29.0-jre</guava.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.passay</groupId>
            <artifactId>passay</artifactId>
            <version>${passay.version}</version>
        </dependency>
        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>${guava.version}</version>
        </dependency>
        <dependency>
            <groupId>com.h2database</groupId>
            <artifactId>h2</artifactId>
            <scope>runtime</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

代码编写

这里主要写出改动或新增的类，其他的则和注册实现篇基本一致

用户角色
UserAuthority.java

package top.yekongle.login.entity;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.Id;

import lombok.Data;
import lombok.NoArgsConstructor;

/**
 * @Description:
 * @Author: Yekongle
 * @Date: 2020年5月14日
 */

@Entity
@Data
@NoArgsConstructor
public class UserAuthority {
    @Id
    @GeneratedValue
    private Long id;
    private String username;
    private String role;
}

用户角色操作接口
UserAuthorityRepository.java

package top.yekongle.login.repository;

import java.util.List;

import org.springframework.data.jpa.repository.JpaRepository;

import top.yekongle.login.entity.UserAuthority;

/**
 * @Description:
 * @Author: Yekongle
 * @Date: 2020年5月14日
 */
public interface UserAuthorityRepository extends JpaRepository<UserAuthority, Long> {
    List<UserAuthority> findByUsername(String username);
}

注册方法，注册用户时默认指定一个 “ROLE_USER” 角色并保存
UserServiceImpl.java

package top.yekongle.login.service.impl;

import java.util.Arrays;

import javax.transaction.Transactional;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.stereotype.Service;

import lombok.extern.slf4j.Slf4j;
import top.yekongle.login.dto.UserDTO;
import top.yekongle.login.entity.User;
import top.yekongle.login.entity.UserAuthority;
import top.yekongle.login.exception.UserAlreadyExistException;
import top.yekongle.login.repository.UserAuthorityRepository;
import top.yekongle.login.repository.UserRepository;
import top.yekongle.login.service.UserService;

/**
 * @Description:
 * @Author: Yekongle
 * @Date: 2020年5月5日
 */
@Slf4j
@Service
public class UserServiceImpl implements UserService {

    @Autowired
    private UserRepository userRepository;

    @Autowired
    private UserAuthorityRepository userAuthorityRepository;

    @Autowired
    private PasswordEncoder passwordEncoder;

    @Transactional
    @Override
    public User registerNewUserAccount(UserDTO userDTO) throws UserAlreadyExistException {
        if (emailExists(userDTO.getEmail())) {
            throw new UserAlreadyExistException("该邮箱已被注册:" + userDTO.getEmail());
        }
        log.info("UserDTO:" + userDTO.toString());
        User user = new User();
        user.setEmail(userDTO.getEmail());
        user.setPassword(passwordEncoder.encode(userDTO.getPassword()));
        userRepository.save(user);

        UserAuthority userAuthority = new UserAuthority();
        userAuthority.setUsername(userDTO.getEmail());
        userAuthority.setRole("ROLE_USER");
        userAuthorityRepository.save(userAuthority);

        return user;
    }

    private boolean emailExists(String email) {
        return userRepository.findByEmail(email) != null;
    }
}

web mvc 配置，这里主要指定直接返回的页面
WebMvcConfig.java

package top.yekongle.login.config;

import java.util.Locale;

import org.springframework.web.servlet.LocaleResolver;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import org.springframework.web.servlet.i18n.CookieLocaleResolver;

/**
 * @Description: web mvc 配置
 * @Author: Yekongle
 * @Date: 2020年5月8日
 */
@Configuration
public class WebMvcConfig implements WebMvcConfigurer {


    @Override
    public void addViewControllers(ViewControllerRegistry registry) {
        /*
         * 设置对"/"的请求映射到login, 如果没有逻辑业务，
         * 则没有必要用控制器方法对请求进行映射
         * */
        registry.addViewController("/").setViewName("forward:/login");
        registry.addViewController("/registration.html");
        registry.addViewController("/successRegister.html");
        registry.addViewController("/home.html");
        registry.addViewController("/logout.html");
        registry.addViewController("/invalidSession.html");
    }
}

web 安全配置，主要包括自定义用户认证，登入登出配置，访问控制，session 管理等。
WebSecurityConfig.java

	package top.yekongle.login.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.authentication.dao.DaoAuthenticationProvider;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.core.session.SessionRegistry;
import org.springframework.security.core.session.SessionRegistryImpl;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.authentication.AuthenticationFailureHandler;
import org.springframework.security.web.authentication.AuthenticationSuccessHandler;

import org.springframework.security.web.session.HttpSessionEventPublisher;
import top.yekongle.login.security.MyLogoutSuccessHandler;
import top.yekongle.login.security.MyUserDetailServiceImpl;

/**
 * @Description: Web 安全配置
 * @Author: Yekongle
 * @Date: 2020年5月5日
 */
@Configuration
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {

    @Autowired
    private MyUserDetailServiceImpl userDetailsService;

    @Autowired
    private AuthenticationSuccessHandler authenticationSuccessHandler;

    @Autowired
    private AuthenticationFailureHandler authenticationFailureHandler;

    @Autowired
    private MyLogoutSuccessHandler myLogoutSuccessHandler;

    // 使用 BCrypt强哈希方法来加密密码, 每次加密结果不一样
    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }


    /*
     * 可以有多个 AuthenticationProvider，默认使用 DaoAuthenticationProvide
     * DaoAuthenticationProvider 在进行认证的时候需要一个 UserDetailsService 来获取用户的信息 UserDetails
     * 其中包括用户名、密码和所拥有的权限
     * 当其中一个 AuthenticationProvider 认证成功后，后续 provider不再认证
     * */
    @Bean
    public DaoAuthenticationProvider authenticationProvider() {
        DaoAuthenticationProvider authenticationProvider = new DaoAuthenticationProvider();
        authenticationProvider.setUserDetailsService(userDetailsService);
        authenticationProvider.setPasswordEncoder(passwordEncoder());
        return authenticationProvider;
    }

    /* 注册 session 创建和销毁监听器，以便用于支持 session 并发控制
     * 通知 Spring Security 更新会话注册表
     * 实际上创建的监听只使用销毁事件
     **/
    @Bean
    public HttpSessionEventPublisher httpSessionEventPublisher() {
        return new HttpSessionEventPublisher();
    }

    // 跟踪活跃的session
    @Bean
    public SessionRegistry sessionRegistry() {
        return new SessionRegistryImpl();
    }

    /*
     * 用户认证
     * 这里使用通用的用户认证，还有基于内存的用户和JDBC中的用户
     * 数据访问方式可以是多种多样，包括非关系型数据库, 这时就需先自定义实现 UserDetailsService 接口来获取用户信息
     * */
    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.authenticationProvider(authenticationProvider());
    }

    /*
     * 请求授权配置
     * */
    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http
                .csrf().disable()
                .authorizeRequests()
                // 允许访问 H2 DB 控制台
                .antMatchers("/h2/**").permitAll()
                .antMatchers("/css/**", "/js/**", "/fonts/**").permitAll()
                .antMatchers(HttpMethod.OPTIONS, "/**").permitAll()
                .antMatchers("/user/registration*", "/registration*", "/successRegister*", "/login*", "/logout*").permitAll()
                .antMatchers("/invalidSession*").anonymous()
                .anyRequest().authenticated()
                .and()
                .formLogin().loginPage("/login")
                // 使用自定义登录成功处理
                .successHandler(authenticationSuccessHandler)
                // 使用自定义登录成功处理
                .failureHandler(authenticationFailureHandler)
                .permitAll()
                .and()
                .sessionManagement()
                // 无效 session 跳转
                .invalidSessionUrl("/invalidSession.html")
                // 确保单个用户的单个账号，只有一个活跃的session
                .maximumSessions(1).sessionRegistry(sessionRegistry()).and()
                // 创建一个新的HTTP会话后，使旧的HTTP会话无效，并将旧会话的属性复制过来
                .sessionFixation().migrateSession()
                .and()
                .logout()
                // 使用自定义注销登录成功处理
                .logoutSuccessHandler(myLogoutSuccessHandler)
                // 会清空所有已定义的session
                .invalidateHttpSession(false)
                // 删除 cookie
                .deleteCookies("JSESSIONID")
                .permitAll();
    }

}

实现用户信息接口，自定义获取用户信息的方法，主要时实现了 loadUserByUsername 方法，并返回一个封装了用户账号，密码，权限等信息的 UserDetails 类型的实例 User。
MyUserDetailServiceImpl.java

package top.yekongle.login.security;

import java.util.ArrayList;
import java.util.List;

import javax.transaction.Transactional;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

import lombok.extern.slf4j.Slf4j;
import top.yekongle.login.repository.UserAuthorityRepository;
import top.yekongle.login.repository.UserRepository;
import top.yekongle.login.entity.User;
import top.yekongle.login.entity.UserAuthority;
/**
 * @Description:
 * @Author: Yekongle
 * @Date: 2020年5月5日
 */

@Slf4j
@Service("userDetailsService")
@Transactional
public class MyUserDetailServiceImpl implements UserDetailsService {

    @Autowired
    private UserRepository userRepository;

    @Autowired
    private UserAuthorityRepository userAuthorityRepository;

    @Override
    public UserDetails loadUserByUsername(String email) throws UsernameNotFoundException {
        log.info("Email:" + email);
        User user = userRepository.findByEmail(email);

        if (user == null) {
            throw new UsernameNotFoundException("找不到该用户: "+ email);
        }
        boolean enabled = true;
        boolean accountNonExpired = true;
        boolean credentialsNonExpired = true;
        boolean accountNonLocked = true;

        return new org.springframework.security.core.userdetails
                .User(user.getEmail(), user.getPassword(), enabled, accountNonExpired
                , credentialsNonExpired, accountNonLocked,	getAuthorities(user.getEmail()));
    }

    private List<GrantedAuthority> getAuthorities (String username) {
        List<GrantedAuthority> authorities = new ArrayList<>();
        List<UserAuthority> userAuthorityList = userAuthorityRepository.findByUsername(username);
        log.info("role size:" + userAuthorityList.size());
        for (UserAuthority userAuthority : userAuthorityList) {
            authorities.add(new SimpleGrantedAuthority(userAuthority.getRole()));
        }
        return authorities;
    }
}

自定义登录成功处理器，这里主要是设置会话有效期和指定重定向页面
CustomAuthenticationSuccessHandler.java

package top.yekongle.login.security;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;

import org.springframework.security.core.Authentication;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.web.DefaultRedirectStrategy;
import org.springframework.security.web.RedirectStrategy;
import org.springframework.security.web.WebAttributes;
import org.springframework.security.web.authentication.AuthenticationSuccessHandler;
import org.springframework.stereotype.Component;

import lombok.extern.slf4j.Slf4j;

/**
 * @Author: Yekongle
 * @Date: 2020年5月13日
 */
@Slf4j
@Component("authenticationSuccessHandler")
public class CustomAuthenticationSuccessHandler implements AuthenticationSuccessHandler {

    private RedirectStrategy redirectStrategy = new DefaultRedirectStrategy();

    @Override
    public void onAuthenticationSuccess(HttpServletRequest request, HttpServletResponse response,
                                        Authentication authentication) throws IOException, ServletException {
        log.info("onAuthenticationSuccess");
        redirectStrategy.sendRedirect(request, response, "/home.html");

        // 获取session,如果 session不存在，则返回null。
        final HttpSession session = request.getSession(false);
        if (session != null) {
            // session 有效期 30 min
            session.setMaxInactiveInterval(30*60);
            String username = this.getCurrentUsername(authentication);
            session.setAttribute("user", username);
        }
        // 清除 session 中的 AUTHENTICATION_EXCEPTION 属性
        clearAuthenticationAttributes(request);
    }


    private String getCurrentUsername(Authentication authentication) {
        String username = null;
        if (authentication.getPrincipal() instanceof UserDetails) {
            username = ((UserDetails) authentication.getPrincipal()).getUsername();
        } else {
            username = authentication.getName();
        }
        return username;
    }

    protected void clearAuthenticationAttributes(final HttpServletRequest request) {
        final HttpSession session = request.getSession(false);
        if (session == null) {
            return;
        }
        session.removeAttribute(WebAttributes.AUTHENTICATION_EXCEPTION);
    }

}

自定义登录失败处理器，控制跳转，返回错误信息
CustomAuthenticationFailureHandler.java

package top.yekongle.login.security;

import java.io.IOException;
import java.util.Locale;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.MessageSource;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.WebAttributes;
import org.springframework.security.web.authentication.SimpleUrlAuthenticationFailureHandler;
import org.springframework.stereotype.Component;
import org.springframework.web.servlet.LocaleResolver;

import lombok.extern.slf4j.Slf4j;

@Slf4j
@Component("authenticationFailureHandler")
public class CustomAuthenticationFailureHandler extends SimpleUrlAuthenticationFailureHandler {

    @Override
    public void onAuthenticationFailure(final HttpServletRequest request, final HttpServletResponse response, final AuthenticationException exception) throws IOException, ServletException {
        log.info("onAuthenticationFailure");
        setDefaultFailureUrl("/login?error=true");

        super.onAuthenticationFailure(request, response, exception);

        request.getSession()
                .setAttribute(WebAttributes.AUTHENTICATION_EXCEPTION, exception.getMessage());
    }
}

注销登录成功处理
MyLogoutSuccessHandler.java

package top.yekongle.login.security;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;

import org.springframework.security.core.Authentication;
import org.springframework.security.web.authentication.logout.LogoutSuccessHandler;
import org.springframework.stereotype.Component;

/**
 * @Author: Yekongle
 * @Date: 2020年5月13日
 */

@Component("myLogoutSuccessHandler")
public class MyLogoutSuccessHandler implements LogoutSuccessHandler {

    @Override
    public void onLogoutSuccess(HttpServletRequest request, HttpServletResponse response, Authentication authentication) throws IOException, ServletException {
        final HttpSession session = request.getSession();
        if (session != null) {
            // 清理自定义 session 属性信息
            session.removeAttribute("user");
        }

        response.sendRedirect("/logout.html?logSucc=true");
    }

}

登录请求处理
LoginController.java

package top.yekongle.login.controller;

import org.springframework.security.authentication.AnonymousAuthenticationToken;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;

/**
 * @Author: Yekongle
 * @Date: 2020年5月5日
 */

@Controller
public class LoginController {

    @GetMapping("/login")
    public String login() {
        Authentication auth = SecurityContextHolder.getContext().getAuthentication();
        // 如果已经登录则跳转到 home 页面
        if (auth instanceof AnonymousAuthenticationToken) {
            return "login";
        } else {
            return "home";
        }
    }
}

登录页面
loign.html

<html xmlns:th="http://www.thymeleaf.org"><!-- Thymeleaf的命名空间，将静态页面转换为动态的视图 -->
<head>
    <meta content="text/html;charset=UTF-8"/>
    <meta name="viewport" content="width=device-width, initial-scale=1"/>
    <link th:href="@{/css/bootstrap.min.css}" rel="stylesheet"/>

    <style type="text/css">
        .middle {
            float: none;
            display: inline-block;
            vertical-align: middle;
        }
    </style>
</head>
<body>
<div th:if="${param.error != null}" class="alert alert-danger" th:utext="${session[SPRING_SECURITY_LAST_EXCEPTION]}">error</div>
<div class="container">
    <h2>登录</h2>
    <br/>
    <form name='loginForm' action="login" method="POST" onsubmit="return validate();">
        <div class="row">
            <div class="form-group col-md-6 vertical-middle-sm">
                <label for="email">邮箱</label>
                <input type="email" class="form-control" name="username" aria-describedby="emailHelp">
            </div>
        </div>

        <div class="row">
            <div class="form-group col-md-6">
                <label for="password">密码</label>
                <input type="password" class="form-control" id="password" name="password">
            </div>
        </div>
        <button type="submit" class="btn btn-primary">登录</button>
        <a class="btn btn-default" th:href="@{/registration.html}" >没有账号？</a>
    </form>
</div>

<script th:src="@{/js/jquery-3.5.1.min.js}" type="text/javascript"></script>
<script th:src="@{/js/bootstrap.min.js}" type="text/javascript"></script>
<script th:inline="javascript">
	    function validate() {
		        if (document.loginForm.username.value == "" && document.loginForm.password.value == "") {
		            alert("账号密码不能为空！");
		            document.loginForm.username.focus();
		            return false;
		        }
		        if (document.loginForm.username.value == "") {
		            alert("账号不能为空！");
		            document.loginForm.username.focus();
		            return false;
		        }
		        if (document.loginForm.password.value == "") {
		            alert("密码不能为空！");
		            document.loginForm.password.focus();
		            return false;
		        }
		    }
    </script>

</body>
</html>

主页
home.html

<html xmlns:th="http://www.thymeleaf.org"><!-- Thymeleaf的命名空间，将静态页面转换为动态的视图 -->
<head>
    <meta content="text/html;charset=UTF-8"/>
    <meta name="viewport" content="width=device-width, initial-scale=1"/>
    <link th:href="@{/css/bootstrap.min.css}" rel="stylesheet"/>
</head>
<body>

<nav class="navbar navbar-default">
    <div class="container-fluid">
        <div class="navbar-header">
            <a class="navbar-brand" href="#">home</a>
        </div>
        <ul class="nav navbar-nav navbar-right">
            <li><a style="color:blue;" th:text="${session[user]}" >yekongle</a></li>
            <li><a style="color:orange;" th:href="@{/logout}" >logout</a></li>
        </ul>
    </div>
</nav>

<script th:src="@{/js/jquery-3.5.1.min.js}" type="text/javascript"></script>
<script th:src="@{/js/bootstrap.min.js}" type="text/javascript"></script>
<script th:inline="javascript">

</script>

</body>
</html>

注销登录结果页面
logout.html

<html xmlns:th="http://www.thymeleaf.org"><!-- Thymeleaf的命名空间，将静态页面转换为动态的视图 -->
<head>
    <meta content="text/html;charset=UTF-8"/>
    <meta name="viewport" content="width=device-width, initial-scale=1"/>
    <link th:href="@{/css/bootstrap.min.css}" rel="stylesheet"/>
</head>

<body>
<div class="container">
    <h1 id="error" class="alert alert-danger" th:if="${session[SPRING_SECURITY_LAST_EXCEPTION]}" >退出登录失败</h1>

    <h1 id="success" class="alert alert-info" th:if="${param.logSucc}" >退出登录成功</h1>
    <br/><br/><br/>
    <a class="btn btn-primary" th:href="@{/login}" >登录</a>
</div>
</body>

</html>

无效 session 页面
invalidSession.html

<html xmlns:th="http://www.thymeleaf.org"><!-- Thymeleaf的命名空间，将静态页面转换为动态的视图 -->
<head>
    <meta content="text/html;charset=UTF-8"/>
    <meta name="viewport" content="width=device-width, initial-scale=1"/>
    <link th:href="@{/css/bootstrap.min.css}" rel="stylesheet"/>
</head>
<body>
<div class="container">
    <h1 class="alert alert-danger" >登录过期,请重新登录</h1>
    <a class="btn btn-primary" th:href="@{/login}" >重新登录</a>
</div>

<script th:src="@{/js/jquery-3.5.1.min.js}" type="text/javascript"></script>
<script th:src="@{/js/bootstrap.min.js}" type="text/javascript"></script>
</body>

</html>

运行演示

启动项目

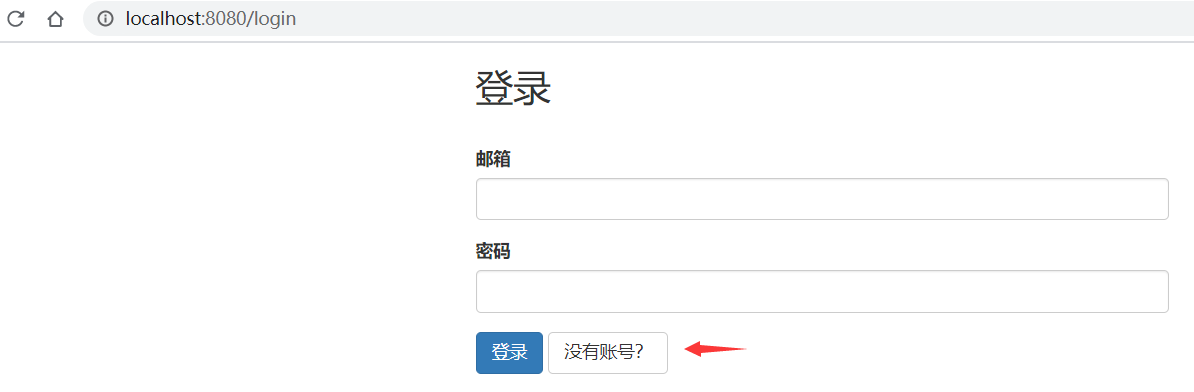

1. 访问 http://localhost:8080，会自动跳到登录页面，先点击跳到注册页面

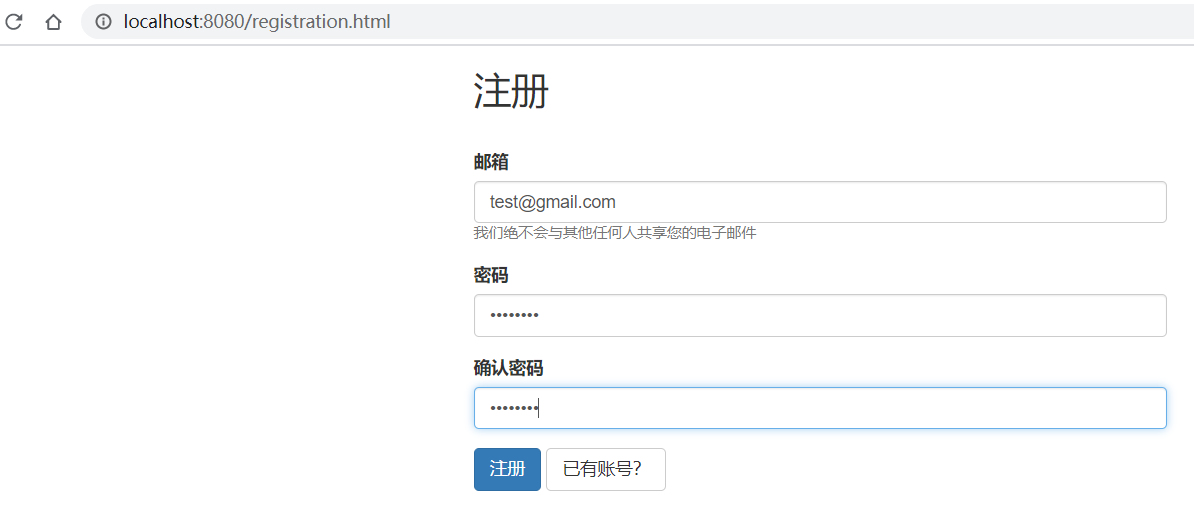

2. 注册账号，邮箱：test@gmail.com 密码：A123456!

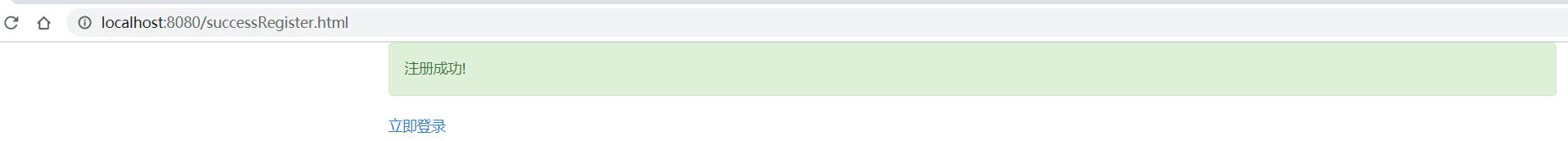

3. 注册成功，立即登录

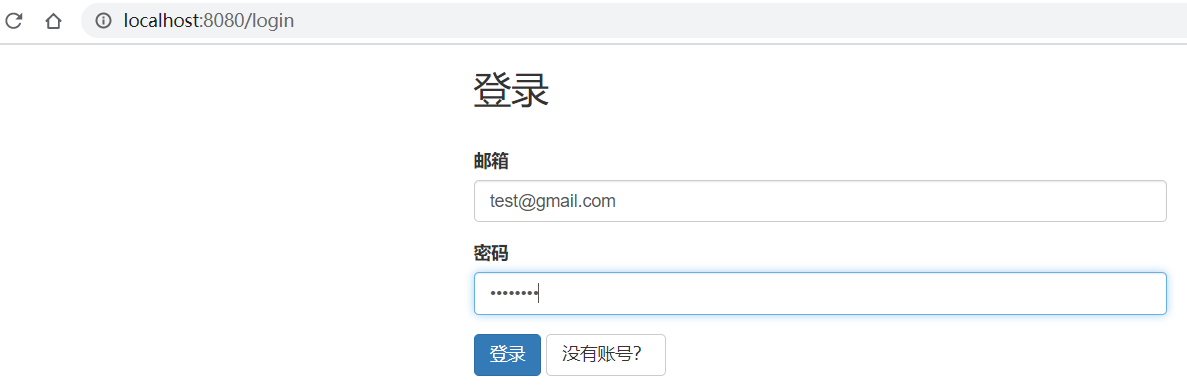

4. 输入刚刚注册的邮箱和密码

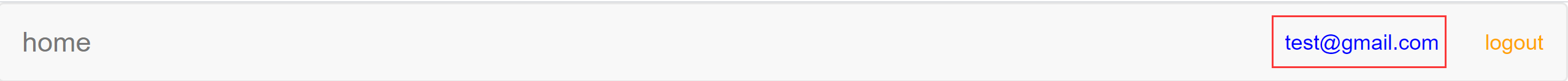

5. 登录成功，跳转到主页，右侧可以显示返回了用户的邮箱

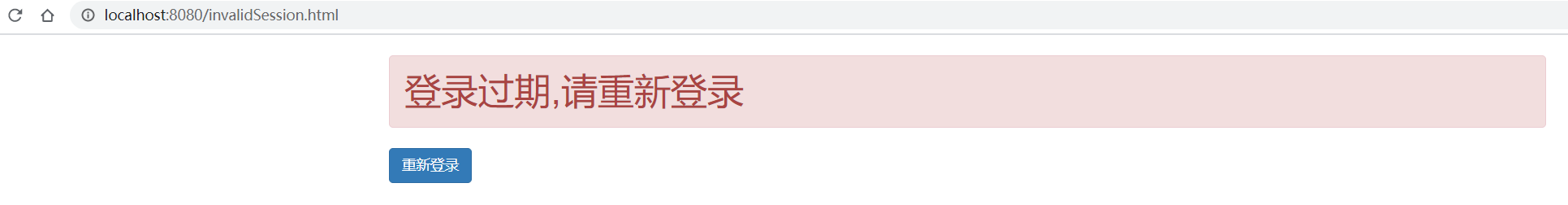

6. 如果超过了设定的会话有效期 30 min 没有操作行为，则会过期

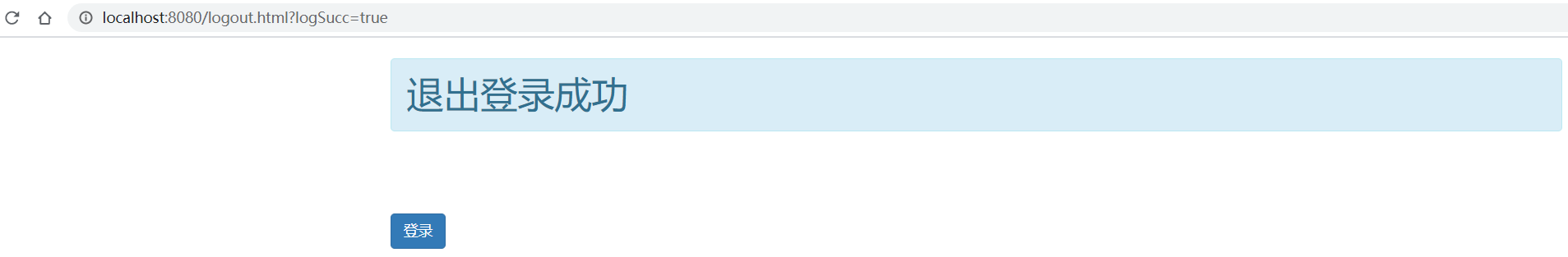

7. 点击 logout，注销成功


项目已上传至 Github: https://github.com/yekongle/springboot-code-samples/tree/master/springboot-login-sample , 希望对小伙伴们有帮助哦。

参考链接：

• https://v4.bootcss.com/docs/getting-started/introduction/
• https://github.com/Baeldung/spring-security-registration
